Equipment range

Visual Sorting & Inspection Machines

Five machine platforms plus peripheral feeding and packing equipment — every machine configured around your workpiece after a free sample trial.

Rotary disc visual sorting machine main view
Rotary disc visual sorting machine side viewNut and bolt sorting machine internal camera detailsDebugging completed CCD inspection machines in the workshop
Standard

Rotary Disc Visual Sorting Machine

FH-RD Series (Glass Disc / Index Disc)

The rotary disc visual sorting machine feeds parts onto a rotating glass or index disc, where up to 24 cameras capture top, bottom, side and thread views in a single revolution. A DD motor servo mechanism keeps glass plane runout within 0.05mm, giving accuracy up to 0.005mm at up to 1500 inspections per minute.

  • Motion control card system: the industrial PC CPU processes data at maximum speed, achieving no mis-blow and no missed blow.
  • Software optimised for the vision sorting industry with common industry-specific algorithms and a visual teaching-style interface.
  • Automatic counting and stop; counting output can be linked directly to a packing machine.
  • Inspection data and images can be stored and exported as BOM table data.
  • AI deep-learning algorithms can be enabled to increase the detection rate of appearance defects.
  • Industrial i7 PC with independent network card supporting 0.3MP to 12MP high-speed cameras, max inspection speed 1,500 pcs/min.
Full Specifications Request Quote
Small parts multi-surface multi-inlet visual sorter full machine
Multi-inlet visual sorter internal mechanism engineering view
AI Flagship

Small Parts Multi-Surface Multi-Inlet Visual Sorter

FH-MP Series

Designed for the highest output requirements, the multi-inlet sorter feeds several tracks in parallel and inspects every surface of a small part in one pass. The vibratory feeder is integrated inside the machine body using an ultra-low-vibration feeding method, saving floor space while reaching up to 2,500 inspections per minute.

  • Motion control card system: the industrial PC CPU processes data at maximum speed, achieving no mis-blow and no missed blow.
  • Software optimised for the vision sorting industry with common industry-specific algorithms and a visual teaching-style interface.
  • Automatic counting and stop; counting output can be linked directly to a packing machine.
  • Inspection data and images can be stored and exported as BOM table data.
  • AI deep-learning algorithms can be enabled to increase the detection rate of appearance defects.
  • Industrial i7 PC with independent network card, 0.3MP–12MP high-speed cameras, max inspection speed 2,500 pcs/min.
Full Specifications Request Quote
Online visual inspection machine for stamping strip

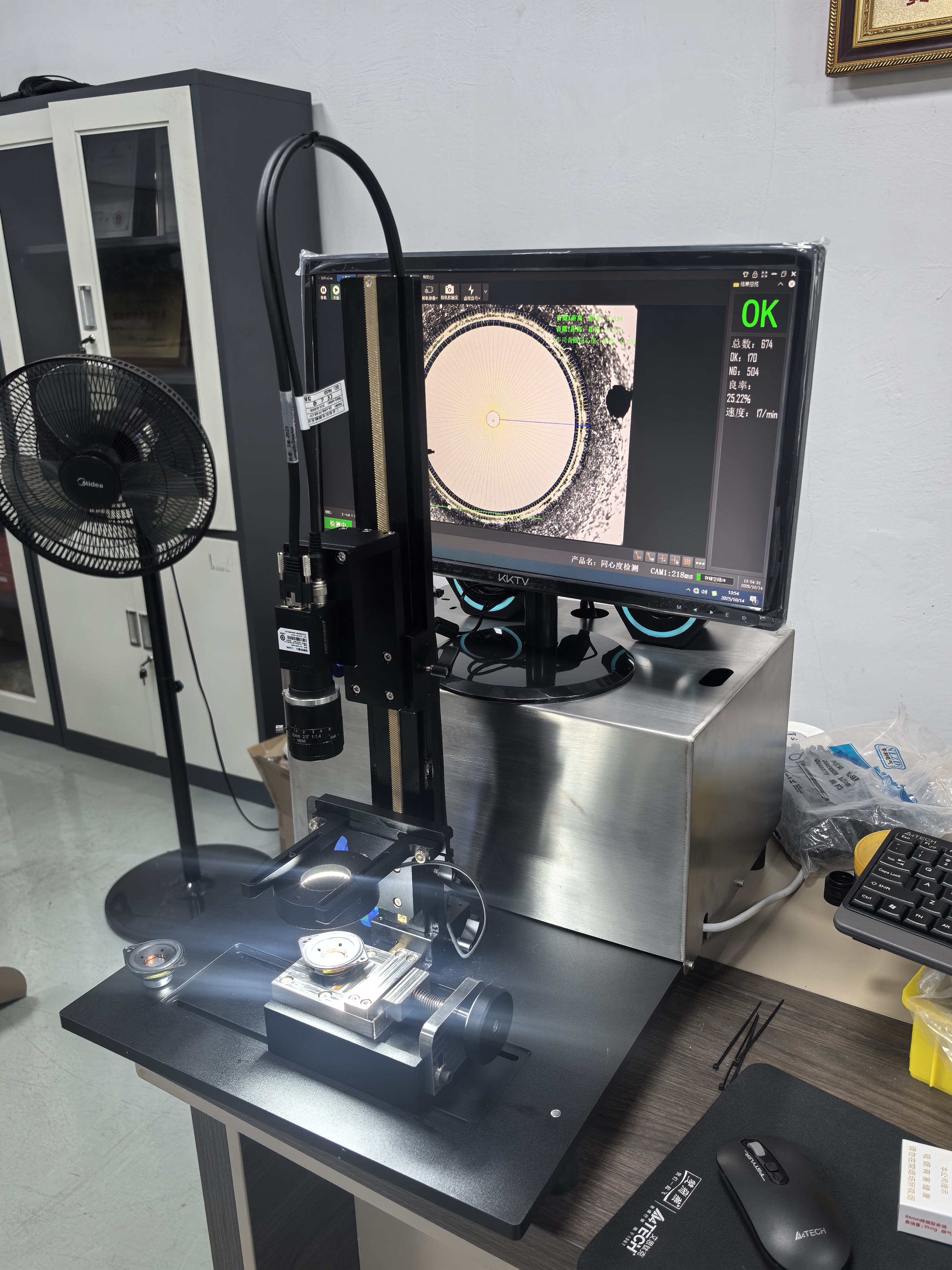

Vision inspection machine development and testing station
Standard

Online Visual Inspection Machine for Stamping Strip

FH-ST Series

Installed directly on the stamping line, this machine inspects the continuous metal strip with high-speed flying-shot cameras before rewinding. A ratchet anti-jam design with settable servo torque protects the strip and the operator, while inspection results can stop the press instantly when defects appear.

  • High-speed flying-shot cameras with maximum-speed CPU data processing achieve no false inspection and no missed inspection.
  • Software optimised for the vision inspection industry, visual teaching-style operation.
  • Industrial i7 PC with independent network card, 0.3MP–5MP high-speed cameras, up to 1,500 inspections per minute.
  • Ratchet design with foolproof anti-jam setting; servo torque is adjustable to prevent strip jamming and manual mis-operation.
  • Inspection data and images stored and exportable for traceability.
  • Optional AI deep-learning model for subtle appearance defects.
Full Specifications Request Quote
Conveyor belt on-line visual inspection machine with in-feed

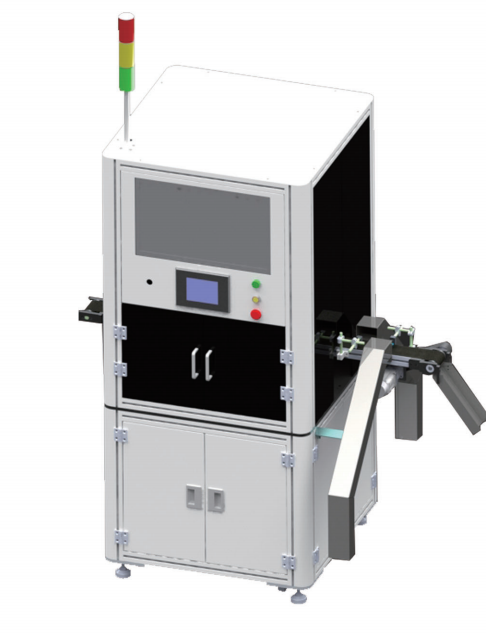

Conveyor belt visual inspection machine front view
Entry Level

Conveyor Belt On-line Visual Inspection Machine

FH-CB Series

The conveyor belt inspection machine uses servo belt transport so larger workpieces can be inspected in-line. It can connect with the customer's existing conveyor or vibratory feeder for automatic loading, making it the most flexible entry into automated visual inspection.

  • High-speed flying-shot cameras with maximum-speed CPU data processing, no false or missed inspection.
  • Software optimised for the vision inspection industry with visual teaching-style interface.
  • Industrial i7 PC, independent network card, 0.3MP–5MP cameras, up to 500 inspections per minute.
  • Conveyor belt servo power handles large workpieces; can dock with the customer's existing conveyor or vibratory feeder for automatic loading.
  • Optional AI deep-learning appearance module and QR code reading.
Full Specifications Request Quote
Custom non-standard visual inspection machine engineering view
Custom inspection stations under assembly in the workshop
Customised

Custom Non-standard Visual Inspection Machine

FH-NS Series

When a standard platform cannot cover the workpiece, Fenghang designs the machine around it. Bottom-clearance double-side conveying inspection machines, manual on-line inspection stations, non-standard assembly + inspection equipment and index-disc semi-automatic machines are all built in house from optical design to final acceptance.

  • Free workpiece evaluation and sample inspection trial before quotation.
  • Mechanical, optical, electrical and algorithm engineering carried out by one in-house team.
  • Machines can combine inspection with assembly, counting and packing in one frame.
  • Full documentation, spare parts list and remote debugging access delivered with every project.
Full Specifications Request Quote
Peripheral equipment

Feeding, Counting & Packing

Complete the inspection line with matched feeders, hoppers and packing machines from the same supplier.

High Precision Vibratory Bowl Feeder

Precision bowl feeders tuned to each workpiece for stable, gentle singulation.

Fully Automatic Packing Machine

Counts and packs OK parts straight from the sorter outlet.

Non-standard Vibratory Bowl

Custom bowl geometry for irregular and delicate components.

On-line Vertical Packing Machine

In-line vertical bagging linked to the sorting counter.

Tube Film Packing Machine

Film tube packing for long or slender parts.

Bowl Feeder Hopper

Bulk hopper keeps the bowl loaded for unattended running.

Injection Mould Monitor

Vision monitor guarding injection moulds against part sticking.

Send us your part — we will inspect it for free

Share your drawing or samples and our engineers return a camera layout, detection-rate report and quotation within one working day.
